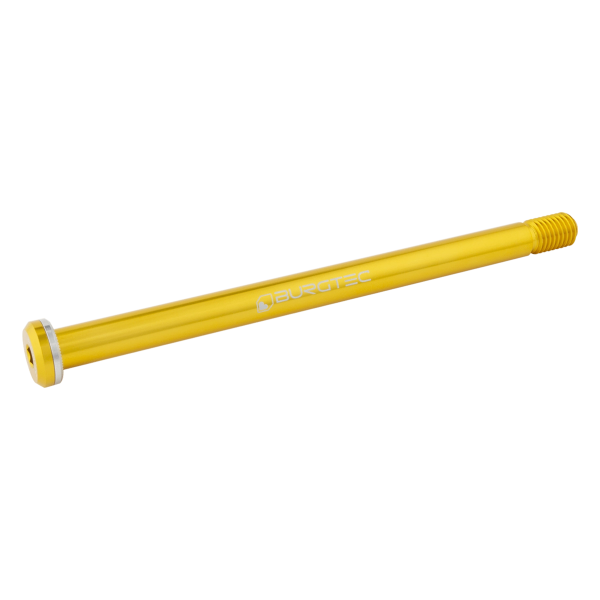

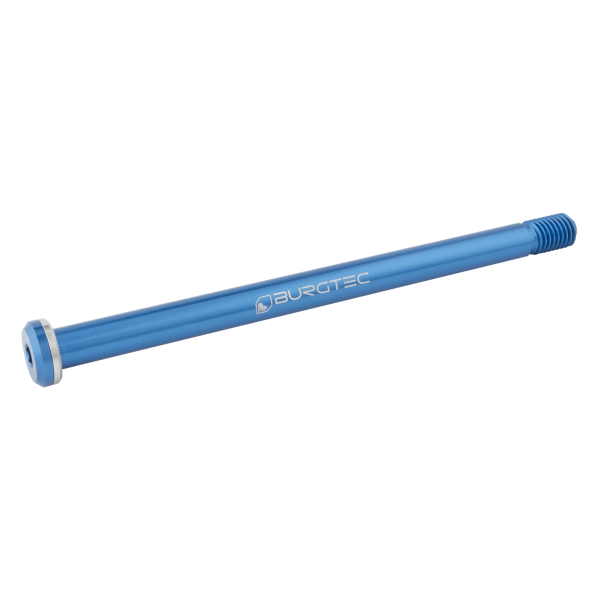

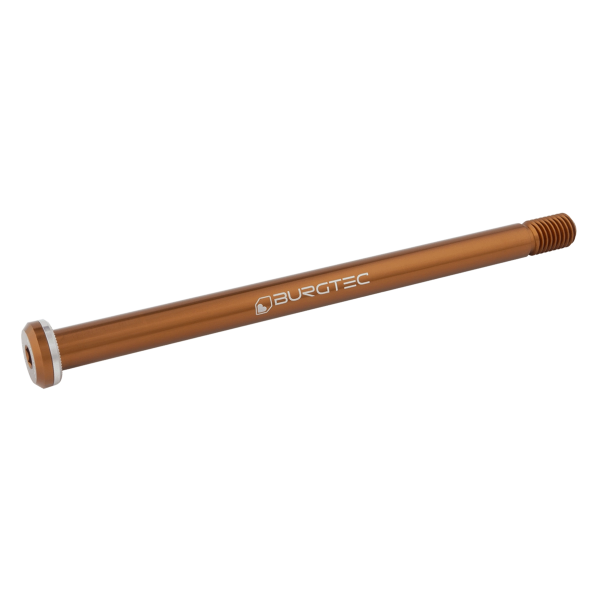

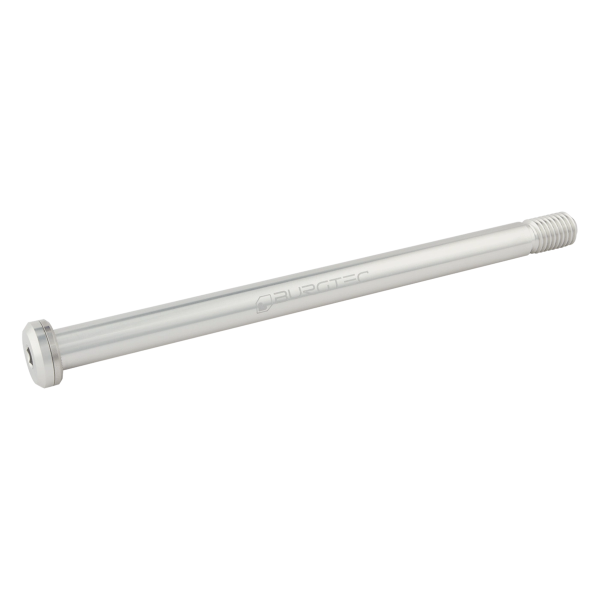

Burgtec 180mm x 12mm 1.75mm Pitch Rear Axle

Clean and Simple is always best. Leverless design for added security and clearance for when situations get tight. These super tough axles tighten up with a 6mm Allen key.

Constructed from 7075 Aluminium and made to the manufacturer’s exact specifications.

This axle is very common with a lot of bike brands, please check the dimensions below to see if it will fit yours.

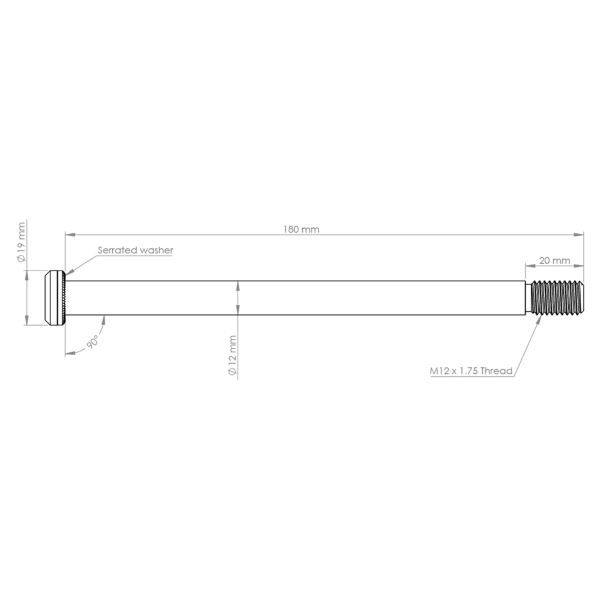

Thread M12 x 1.75mm pitch

Sram Part Number: #00.4318.005.028

Fits:

Niner

• AIR 9 RDO V2
• RKT 9 RDO V1
• JET 9 RDO V2
• RIP 9 RDO V3
• AIR 9 (Alloy) V4
• SIR 9 V3

Stanton

• All Current Stanton Bikes

Nukeproof

• 2020 Reactor 275 & 290
• 2021 Reactor 275 & 290
• 2020 Mega 275 & 290

Cannondale

• 2019/20/21 Habit Alloy & Carbon
• 2019/20 Jekyll Alloy & Carbon
• 2020/21 Moterra
• 2020/21 Habit Neo

Commencal

• We are fairly sure that all Commencal 148/Boost bikes use this axle. Before we get confirmation though, please double check the dimensions of your current axle.

Forbidden

• Druid
• Dreadnaught

Note: This axle is not compatible with Evil Bikes, please see here.

This axle is very common with a lot of bike brands, please check the dimensions below to see if it will fit yours.
